顯示內容 產品圖 型號 尺寸
(寸)		 外形尺寸
(mm)		 視域尺寸
(mm)		 引腳 視角 接口 IC Part No. 亮度
(cd/m2)		 溫度
(°C)

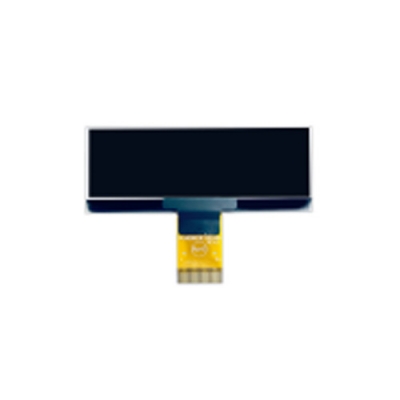

128×32 QT-2832TW22324P03 2.23 62×24 ×2.35 55.02×13.1 24 Parallel /I2C/ 4-wire SPI SSD1305 100 (Min) cd/m2

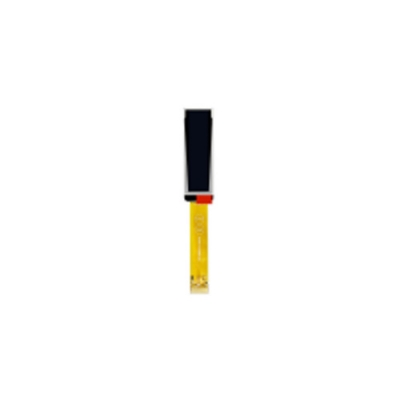

256*64 QT-25664TW20831P02 2.08 62.5(W)×20.6 51.18(W)×12.78 14 3-Wire and 4-Wire SPI SH1122G 100 (Min) cd/m2

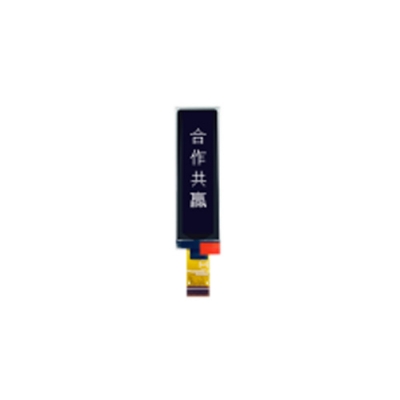

256*64 QT-25664HW20831P01 2.08 62.5(W)×20.6 51.18(W)×12.78 24 3-Wire and 4-Wire SPI SH1122G 100 (Min) cd/m2 -40~80℃

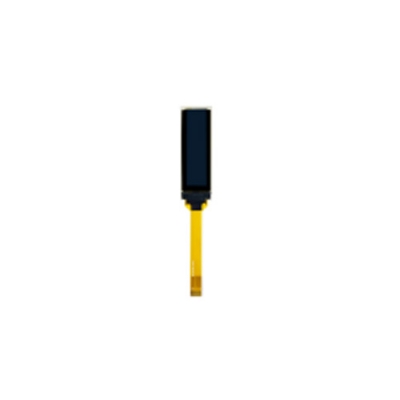

256*64 QT-25664TW20831P03 2.08 60.5 x 19.0 51.18 x 12.78 31 SSD1362 100 (Min) cd/m2

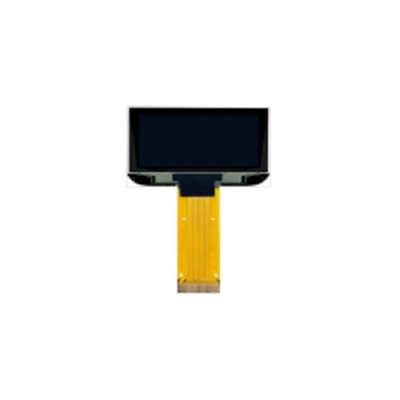

128x160 QT-2860TW19231P01 1.92 32.9x118.4x1.22 28.908 (W) x 39.34 (H) 31 Parallel /I2C/ 4-wire SPI SSD1326 100 (Min) cd/m2 -40~80℃

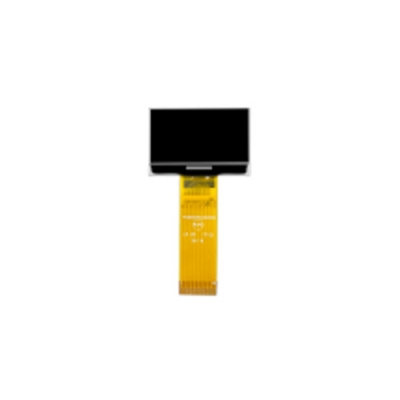

256*32 QT-25632TW1826P01 1.80 52x34.7x1.81 46.06 (W) x 5.74 (H) 26 Parallel /I2C/ 4-wire SPI SSD1326 100 (Min) cd/m2 -40~80℃

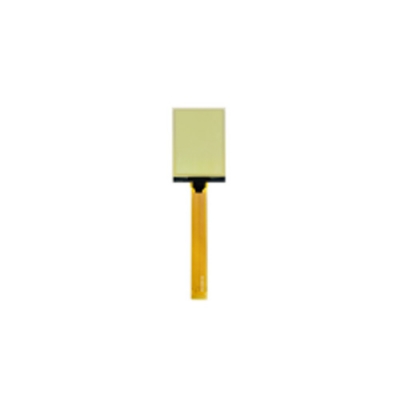

128*32 QT-2832TW11718P01 1.71 50.50 × 15.75 × 2.00 42.22 × 10.54 18 Parallel /I2C/ 4-wire SPI SSD1307 150(Min) cd/m2 -40~80℃

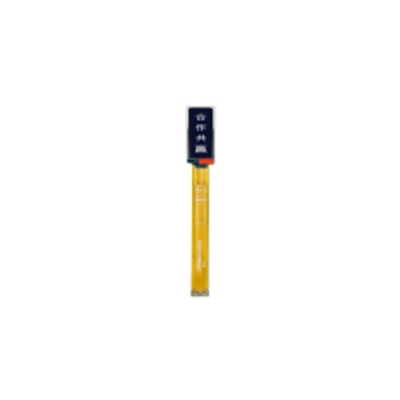

128*32 QT-2832TW11718P02 1.71 50.50 × 15.75 × 2.00 42.22 × 10.54 18 Parallel /I2C/ 4-wire SPI SSD1307 150(Min) cd/m2 -40~80℃
128*64 QT-2864TW1624P02 1.60 41.8× 27.9 × 1.8 36.45 × 18.21 30pin MCU / 4-wire SPI SSD1325 100 (Min) cd/m2 -40~80℃
128×64 QT-2864TW1624P01 1.60 41.9×28.0×1.61 36.45×18.21 24 Parallel / 4-wire SPI SSD1325 100 (Min) cd/m2 -40~80℃
128×64 QT-2864TW15424P03 1.54 42.04×27.22×1.4 35.052×17.516 24 8-bit 68XX/80XX Parallel, 3-/4-wire SPI, I2C SPD0301 100 (Min) cd/m2 -40~80℃
128×64 QT-2864TW15424P02 1.54 45.24 × 29.14 × 2.00 35.056 × 17.52 插接24 8-bit 68XX/80XX Parallel, 3-/4-wire SPI, I2C SSD1309 120(Min) cd/m2 -40~80℃
