顯示內容 產品圖 型號 尺寸
(寸)		 外形尺寸
(mm)		 視域尺寸
(mm)		 引腳 視角 接口 IC Part No. 亮度
(cd/m2)		 溫度
(°C)

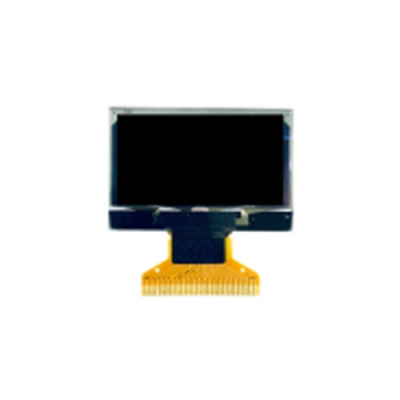

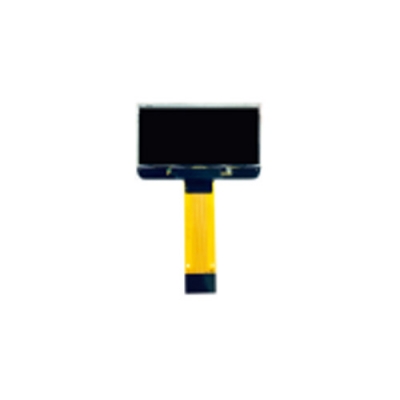

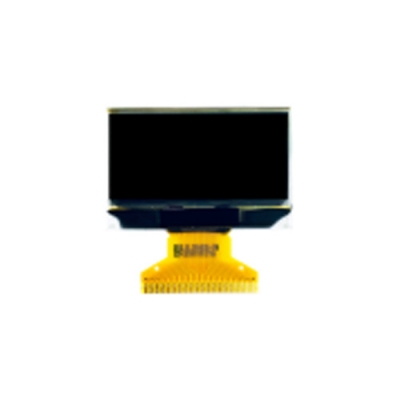

128×64 QT-2864TW15424P01 1.54 45.24 × 29.14 × 2.00 35.056 × 17.52 插接24 8-bit 68XX/80XX Parallel, 3-/4-wire SPI, I2C SSD1305 120(Min) cd/m2 -40~80℃

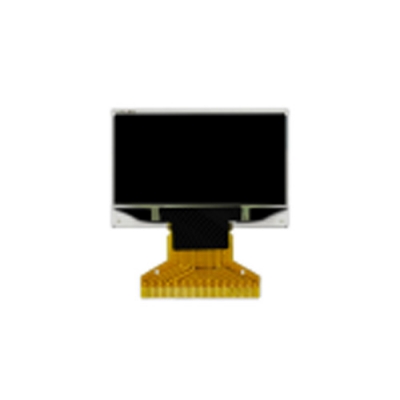

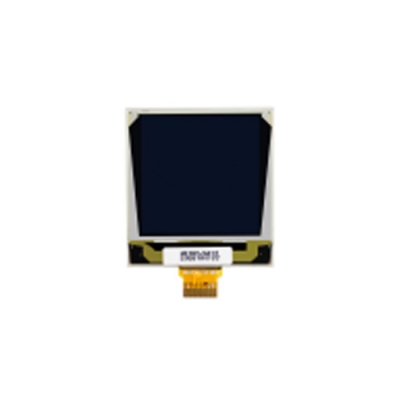

128 x 128 QT-2828TW1525P01 1.50 33.8 x 43.7 x 1.41 26.86 (W) x 26.86 25 8-bit 68XX/80XX Parallel, 3-/4-wire SPI, I2C SSD1327 100 (Min) cd/m2 -40~80℃

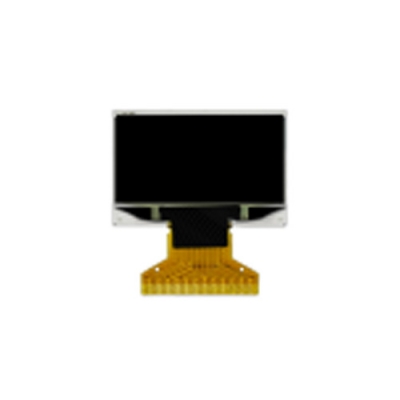

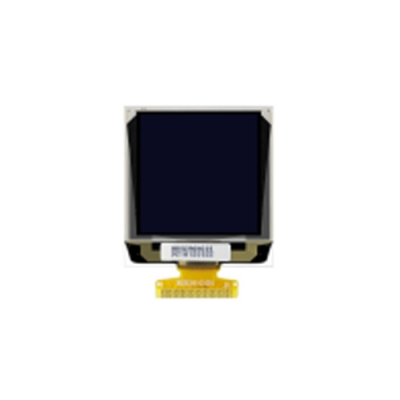

128 x 128 QT-2828HW1525P01 1.50 33.8 x 43.7 x 1.41 26.86 (W) x 26.86 25 8-bit 68XX/80XX Parallel, 3-/4-wire SPI, I2C SSD1327 100 (Min) cd/m2 -40~80℃

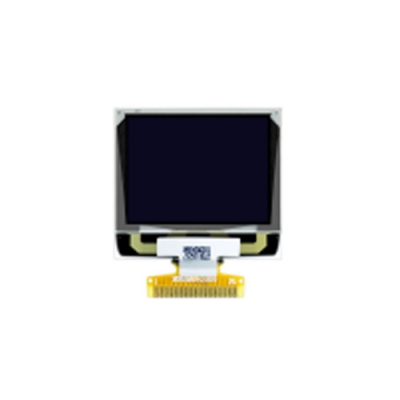

128x96 QT-2896HW13225P01 1.32 32.5x 36.4x1.61 26.86 (W) x 20.14 25 8-bit 68XX/80XX Parallel, 3-/4-wire SPI, I2C SSD1327 120(Min) cd/m2 -40~80℃

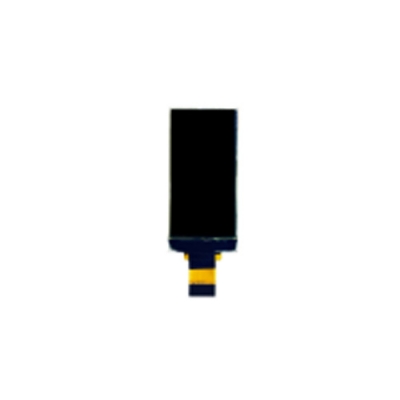

64 × 128 QT-6428TW1313P02 1.30 17.1 × 35.8 × 1.43 14.7 × 29.42 13 4-wire SPI, I2C SH1107 150(Min) cd/m2 -40~80℃

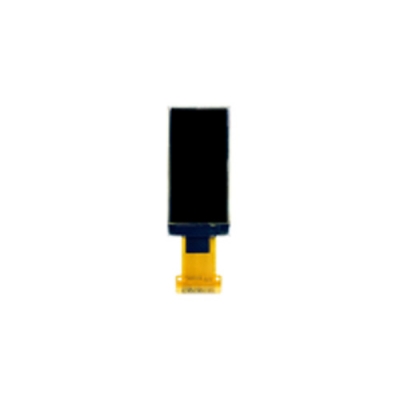

64 × 128 QT-6428HW1313P01 1.30 17.1 × 35.8 × 1.43 14.7 × 29.42 13 4-wire SPI, I2C SH1107 150(Min) cd/m2 -40~80℃

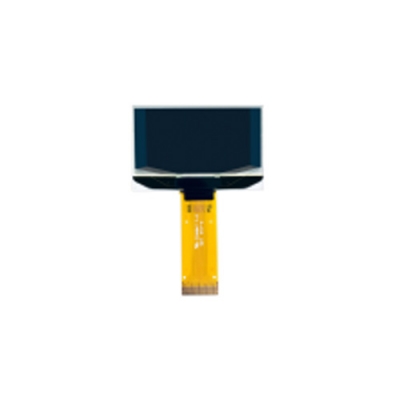

128×64 QT-2864HW1330P03 1.30 32.42x21.36x1.427 29.42 x14.7 30 8-bit 68XX/80XX Parallel, 3-/4-wire SPI, I2C SSD1315 120 (Min) cd/m2 -40~80℃

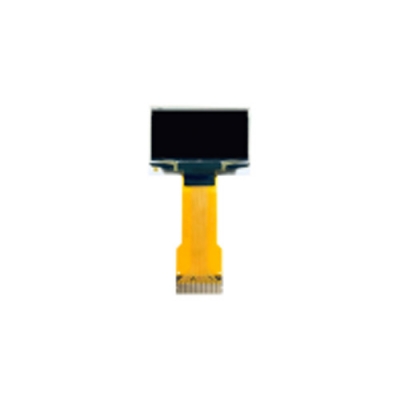

128×64 QT-2864HW1330P02 1.30 34.5×23.0×1.45 29.42×14.70 30 8-bit 68XX/80XX Parallel, 3-/4-wire SPI, I2C SSD1306 120 (Min) cd/m2 -40~80℃
128×64 QT-2864TW1330P40 1.30 34.5×23.0×1.45 29.42×14.70 插接30 8-bit 8080,8-bit 6800, I2C, SPI SH1106G 120(Min) cd/m2 -40~80℃
128×64 QT-2864TW1316P01 1.30 34.5×23.0×1.45 29.42×14.70 下接16 4 wire serial interface SH1106G 130 (Min) cd/m2 -40~80℃
128×64 QT-2864HW1330P03 1.30 34.5×23.0×1.45 29.42×14.70 30 Parallel /I2C/ 4-wire SPI SSD1315 120 (Min) cd/m2 -40~80℃
128×64 QT-2864HW1330P01 0.96 34.5×23.0×1.45 29.42×14.70 30 Parallel /I2C/ 4-wire SPI SH1106G 120 (Min) cd/m2 -40~80℃
